When purchasing or replacing inch tapered roller bearings, identifying the correct bearing number is essential. Unlike many metric bearings, inch tapered roller bearings commonly use separate part numbers for the inner assembly and outer ring.

For distributors, maintenance teams, and industrial buyers, understanding this numbering system helps reduce ordering mistakes and improve replacement accuracy.

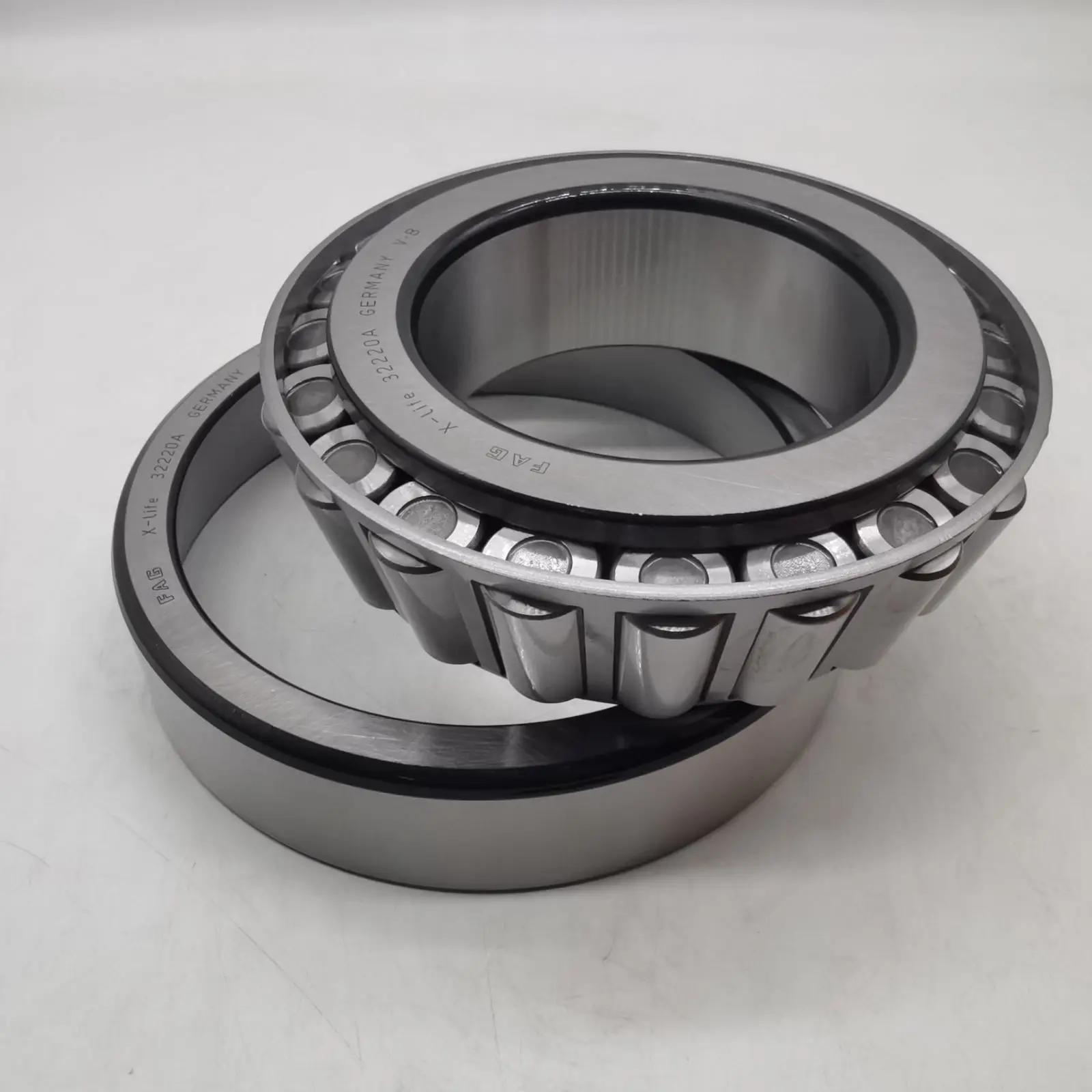

1. Understand the Cone and Cup Structure

An inch tapered roller bearing typically consists of two main components:

• Cone: The inner ring assembly, including tapered rollers and cage.

• Cup: The outer ring that provides the matching raceway.

The cone and cup are commonly identified by separate part numbers.

For example, LM11949/LM11910 is a tapered roller bearing combination in which LM11949 identifies the cone and LM11910 identifies the cup.

When requesting a quotation, providing both numbers helps suppliers identify the required bearing combination.

2. Check the Bearing Markings

The first step is to inspect the markings on the bearing components.

Look for part numbers engraved or printed on the cone and cup. Depending on the manufacturer and product condition, markings may appear on the ring faces or other designated surfaces.

If the markings are damaged or unreadable, additional dimensional checks may be necessary.

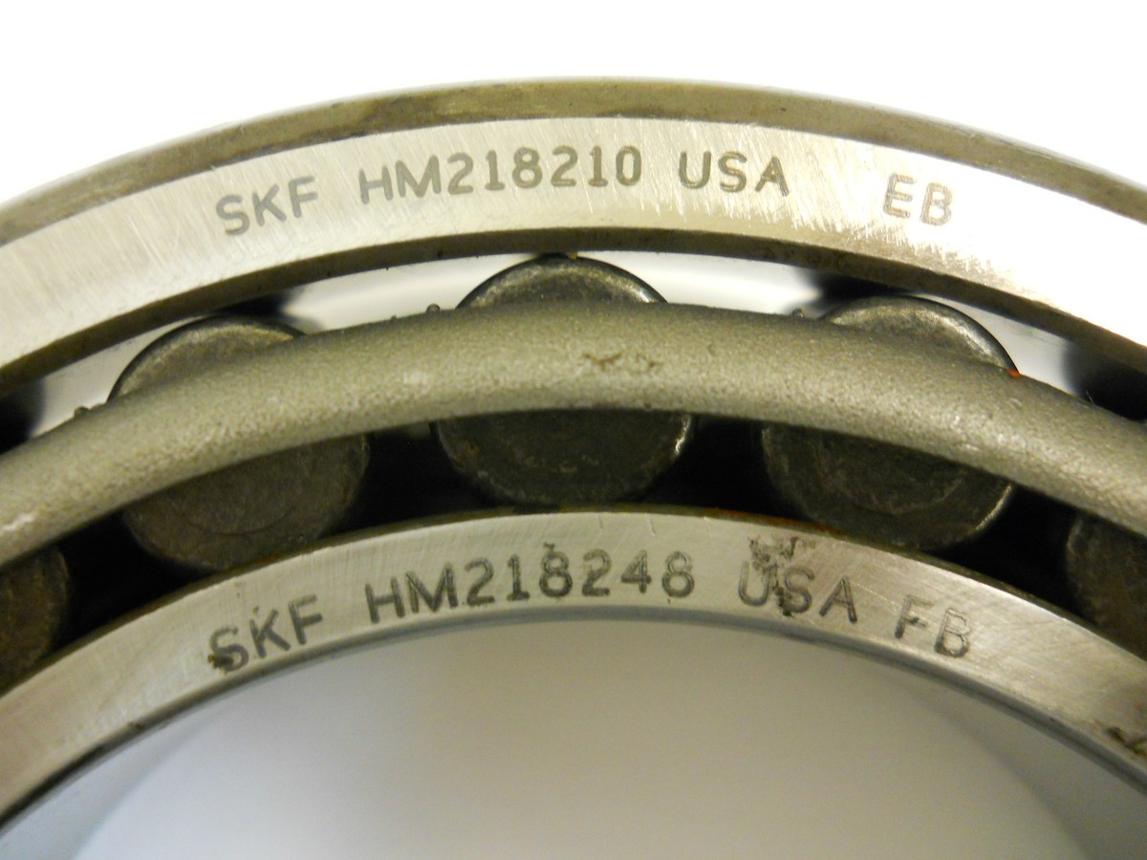

Suggested image: Close-up of cone and cup markings.

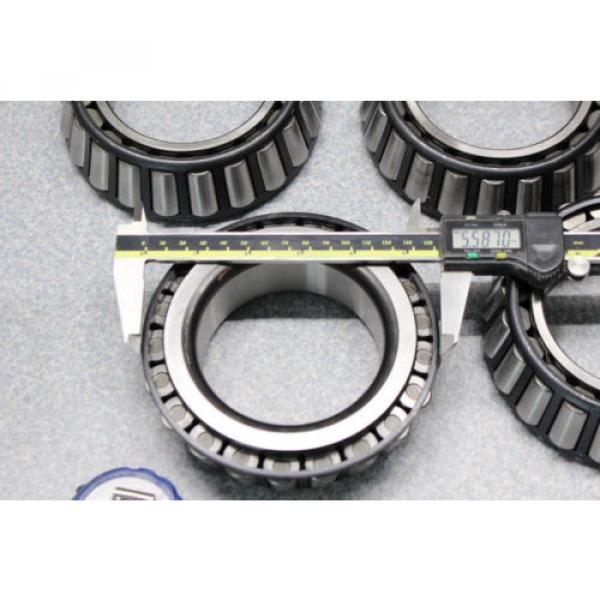

3. Measure the Key Dimensions

If the bearing number cannot be identified, measure the following dimensions:

Accurate measurements are important because different inch tapered roller bearing combinations may have similar dimensions.

For precision replacement, measurements should be compared with the manufacturer's dimensional specifications rather than used as the only identification method.

4. Verify the Complete Bearing Combination

Not every cone and cup with similar dimensions is interchangeable.

When identifying a replacement, buyers should confirm:

• Complete cone and cup part numbers

• Bore and outside diameters

• Overall bearing width

• Contact geometry and compatible component combination

• Load and application requirements

• Any special design or material requirements

Using an incorrect cone and cup combination may affect bearing performance, internal geometry, and service life.

5. Identify the Application

Inch tapered roller bearings are commonly found in:

• Automotive wheel hubs

• Trailers and truck equipment

• Agricultural machinery

• Industrial gearboxes

• Construction equipment

• Heavy-duty mechanical assemblies

The original application can provide useful information when confirming the correct replacement bearing.

For equipment using older or less common bearing designs, technical drawings or original samples may also be required.

6. What If the Bearing Number Is Unavailable?

If the original part number is missing, buyers can provide the following information to their supplier:

1. Clear photographs of the bearing and its markings.

2. Bore diameter, outside diameter, and width.

3. Equipment model or application.

4. Original bearing sample or technical drawing, if available.

For unusual sizes or discontinued designs, a non-standard bearing solution may be considered after technical evaluation.

Inch Tapered Roller Bearing Solutions from DBS Bearing

DBS Bearing supplies metric and inch tapered roller bearings for industrial, automotive, agricultural, and heavy-duty applications.

We also support bearing sourcing and non-standard bearing requirements based on available drawings, samples, and technical specifications.

Whether you need a standard cone and cup combination or assistance identifying an existing bearing, our team can help review the available information and check suitable supply options.

Looking for inch tapered roller bearings?

Send us your cone number, cup number, dimensions, or product photos for quotation and technical confirmation.
